Fibonacci Ratios and Elliott Wave Together
Fibonacci ratios give the wave structure its proportions, and the two frameworks fit because one describes shape while the other measures size: a wave count says what pattern the market is in, and the ratios say how long each part tends to run relative to the last. Separately, one is a map without distances and the other is distances without a map. Together they turn descriptions like a deep wave 2 into a price zone you can actually order around.
Why the Two Frameworks Fit
The connection is arithmetic before it is mystical. The Fibonacci sequence builds each term from the previous two, and the ratio between neighbors settles at one and a half times plus a shrinking remainder: 1.618, the golden ratio, with 0.618 as its reciprocal. Markets retrace and extend in proportional chunks because participation scales, and the ratios are simply the vocabulary for proportional behavior. The wave framework already claimed that waves relate to each other; the ratios state how.
The honest framing matters. The ratios are tendencies with wide error bars, strongest where they cluster, weakest when used as single lines. A wave 2 that retraces exactly 61.8 percent to the tick is not the phenomenon; a wave 2 that dies inside the fifty to sixty-two percent band and hands off to a violent wave 3 is. Every number in this lesson should be read as the center of a zone, never as a line in the sand.
Retracements Inside an Impulse

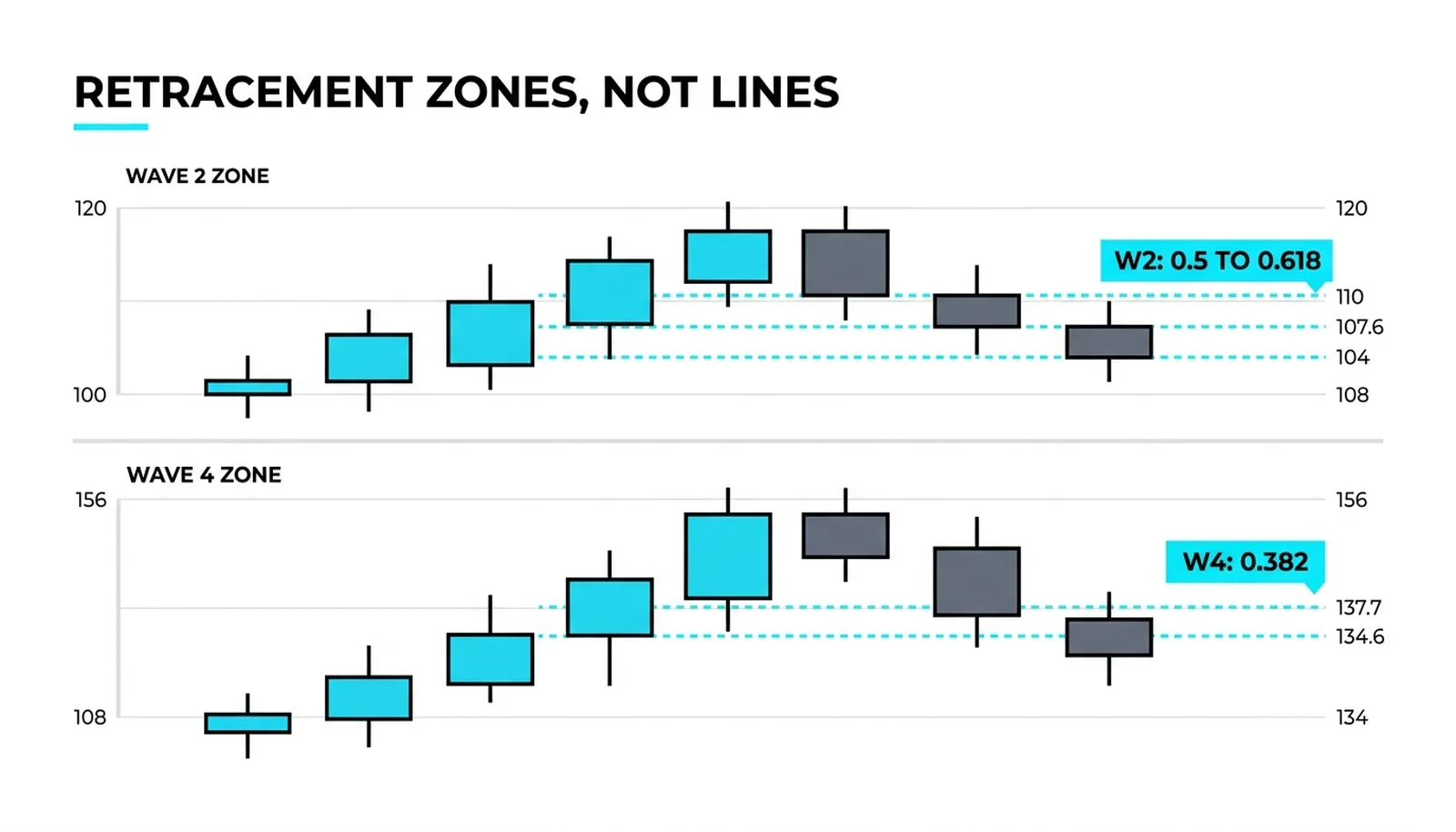

Wave 2 is the deep one. It commonly retraces half to sixty-two percent of wave 1, with a third-to-forty percent retracement as the strong-trend alternative. The fifty percent level is the statistical heart of the band, and the practical reading is a zone: price entering the fifty to sixty-two percent area while momentum deteriorates is where wave 2 is finishing until proven otherwise. Wave 4 is the shallow one, commonly giving back about thirty-eight percent of wave 3, or of the whole advance from origin to wave 3 top, which is the same calculation made over a longer ruler. The depth contrast between the two retracements is the alternation guideline expressing itself in percentages.
Two habits make retracements usable. First, measure from the correct anchors: wave 2 is measured against wave 1 only, start to end, and wave 4 against wave 3 or the origin-to-wave-3 span, not against some screen-corner guess. Second, let the zone decide rather than the first touch: a wave 2 that spikes into the band and closes back out is the pattern completing, and the trader who demanded an exact print spent the whole entry waiting for a number that never printed.
Extensions and Projections
Extensions measure trend waves against each other. Wave 3 relates to wave 1 most often by the golden ratio: one and a half times wave 1, measured from wave 2's low, is the classic wave 3 target, and a wave 3 that travels beyond twice wave 1 is called extended, which happens when participation keeps building. Wave 5 relates to wave 1 by equality when wave 3 extended, and by six tenths of wave 1, or of the origin-to-wave-3 span, when momentum is fading. These are projections, not promises: they tell you where the next leg should be sized, so that the surprise arrives as a defined level rather than a feeling.
Time carries ratios too, and the same sequence appears in bar counts. A wave 3 that runs one and a half times the number of sessions of wave 1 is making the proportional statement in hours instead of points. Time projections are the coarsest tool in the kit, and their best use is patience: when price reaches a target but time has not, the completion tends to take longer, not shorter.
Fibonacci Inside Corrections

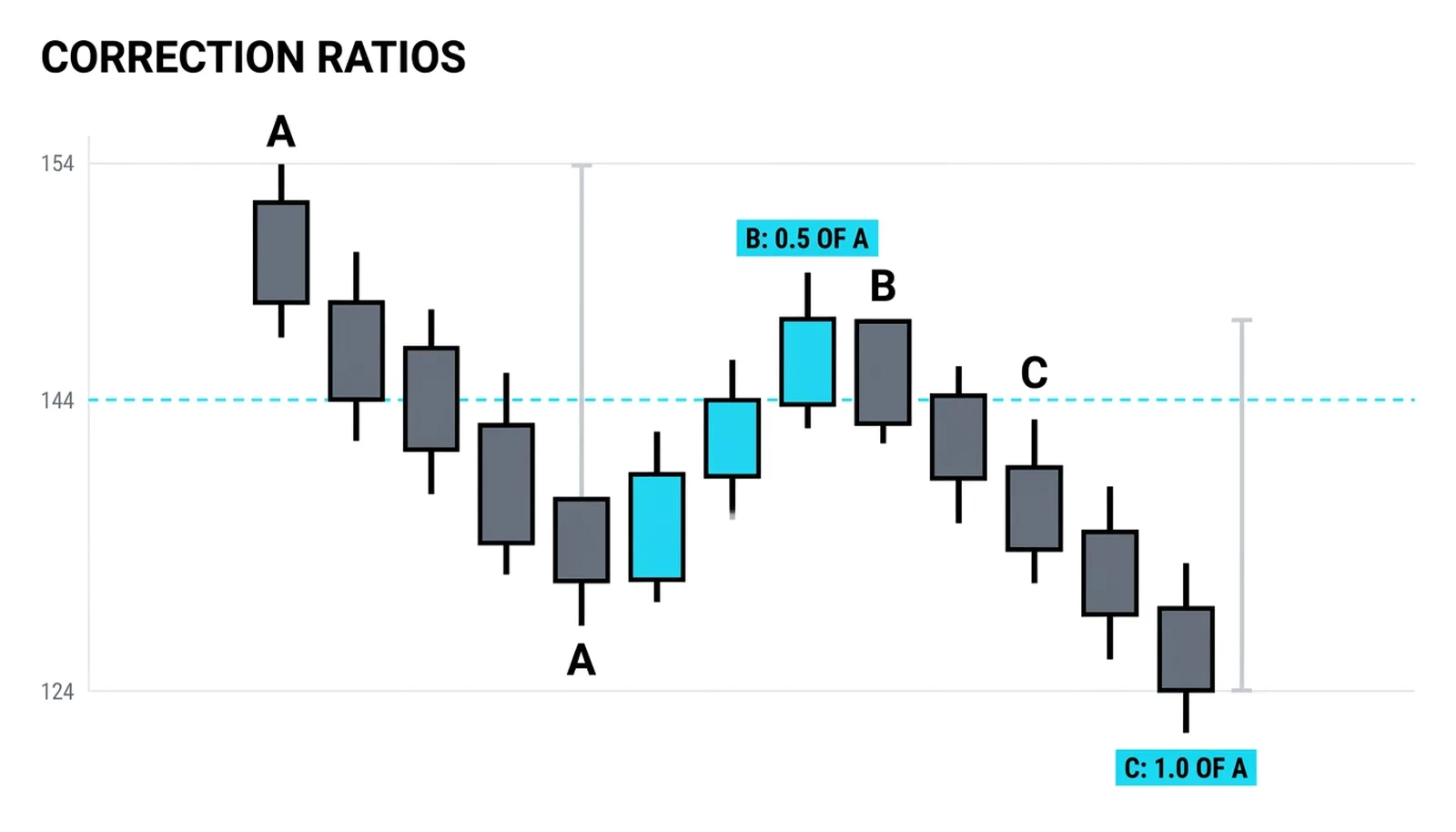

Corrections have their own ratio table. In a zigzag, wave B retraces a third to a half of wave A, and wave C runs even with wave A, sometimes stretching to one and a half times A. In a flat, wave B recovers most of wave A, and in the expanded version B exceeds the correction's start by the golden-ratio family of distances, commonly a quarter to a third beyond the old extreme. In triangles, each leg relates to the previous by about six tenths, the coil literally tightening by the ratio, which is why the final e wave is so often the smallest and the thrust so predictable in size.
The correction table earns its keep as a classification aid. Measuring wave B against wave A separates the sharp correction from the sideways one while the pattern is still forming: a B that stalls at a third of A votes zigzag, a B that recovers most of it votes flat, a B that exceeds the start votes expanded flat, with everything that vote implies for the depth of the coming C. One measurement, three different playbooks.
The tool these numbers live in was built in the retracement lesson; here it meets a count worth measuring.
A Worked Example: The Numbers Under the Count

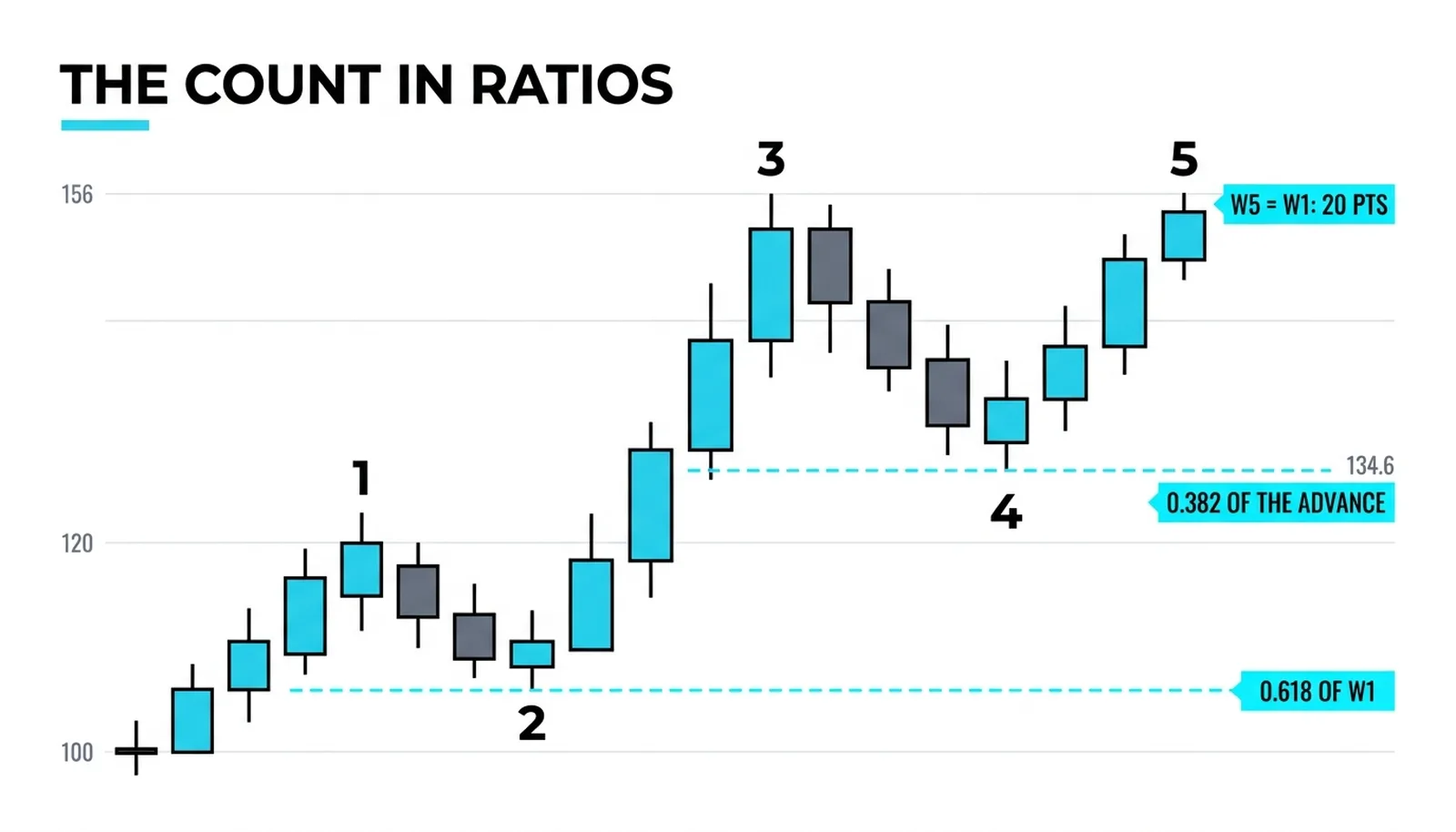

Take the hypothetical advance from the earlier lessons, invented numbers throughout, and audit it the way a ratio-literate trader would. Wave 1 ran 100 to 120, twenty points. Wave 2 pulled back twelve of them, and the golden-ratio retrace of a twenty point wave lands at 107.6: the actual low at 108 missed it by less than half a point. Wave 3 ran from 108 to 156, forty-eight points, two point four times wave 1, an extended middle whose own internal third carried the golden-ratio extension; a trader projecting one and a half times wave 1 from the 108 low had a first target at 140 and a reason to stay long as it was left behind.
Wave 4 pulled back twenty-two points from the 156 top. Measured against wave 3 alone that is forty-six percent, a shade under half; measured against the entire advance from 100, it is almost exactly thirty-eight percent, the classic shallow fourth. Wave 5 then matched wave 1 point for point, twenty for twenty, the equality guideline and the one-to-one ratio saying the same thing. The correction that followed kept the table: wave B recovered half of wave A, wave C equaled wave A at twenty points, and the whole retracement of the impulse held the fifty percent zone of the 100 to 154 advance. Five checks, five passes, and the same audit run in real time would have produced the wave 4 zone, the wave 5 target, and the correction's completion zone before each arrived.
| Spot | Usual ratio | Ours | Off by |
|---|---|---|---|
| Wave 2 low | 0.618 of wave 1 | 108 versus 107.6 | 0.4 points |
| Wave 4 low | 0.382 of origin to wave 3 | 134 versus 134.6 | 0.6 points |
| Wave 5 top | 1.0 of wave 1 | 154 versus 154 | exact |
| Wave B top | 0.5 of wave A | 144 versus 144 | exact |
| Wave C low | 1.0 of wave A | 124 versus 124 | exact |
Clusters Beat Single Levels

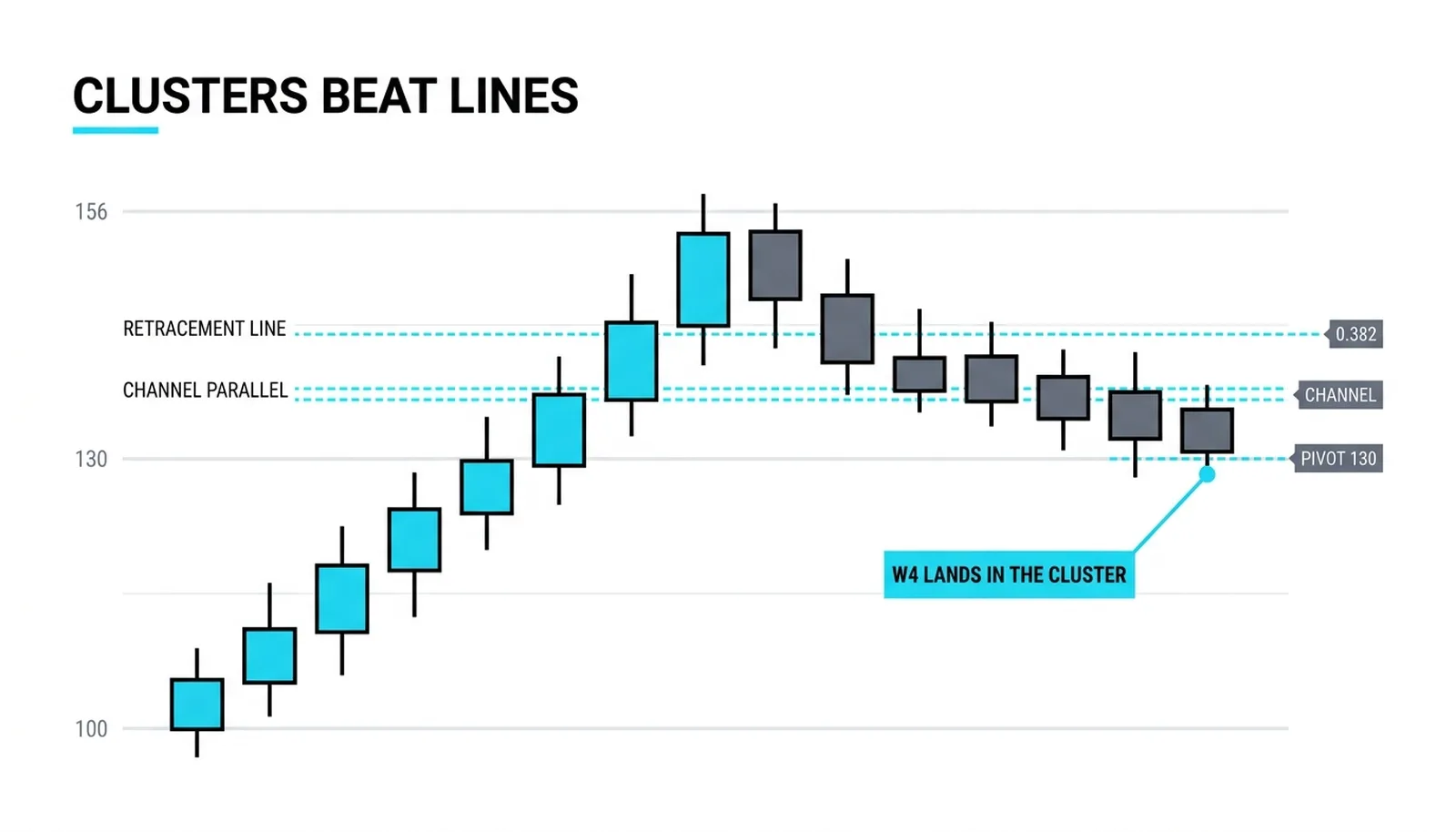

A single ratio line is a suggestion. A cluster, two or three independent methods landing in the same price zone, is a location. The wave 4 low in the worked example was more than a thirty-eight percent retracement; it sat where the retracement zone met the lower parallel of the working channel and just above the equality projection of a smaller-degree wave inside wave 3. Three unrelated rulers agreeing on one neighborhood is the entire edge: each method is fallible alone, and they are not often wrong together.
The practical workflow is to build zones, not lines. Project the retracement, the channel target, and the prior structure, then stand aside unless two or more overlap. The trade that results has a natural stop, the level that breaks the cluster, and a natural size, the one that respects the distance to it. One blunt sentence: the market does not respect your single line, it respects the place where several honest measurements agree.
Fibonacci Wave Questions
Do I measure retracements from wick or close?
From the structural extreme, wick included, because the ratio table describes the full travel of a wave, and wicks are travel. The close-based reading is for law boundaries, not for proportion work. Whichever you choose, keep it consistent across every measurement in one count, or the clusters you build will be arithmetic fictions.
Which ratio do I pick when several apply?
You do not pick; you let structure eliminate. A wave 2 entering the fifty to sixty-two percent band with deteriorating momentum is completing regardless of where in the band it stops, and a wave 4 that slices through thirty-eight percent is telling you the retracement is measuring against the longer ruler. The ratios form a list of candidates, the market picks one, and your job is to recognize which.
Do time ratios actually work?
As patience tools, yes; as timing tools, loosely. Bar counts between pivots often relate by the same family of ratios, and the practical use is expectation: when price has reached its zone but time has not, expect the completion to stretch. Treat time projections as a way to stop front-running the pattern, not as a clock.
What if wave 2 retraces only a third?
Then the market is voting for strength, and the guideline table expects a longer, more violent wave 3 than usual. Shallow second waves are information about the trend's underlying demand, and the framework's response is positional: respect the shallowness, extend the wave 3 projections, and stop waiting for the deep entry that is not coming.
Structure, guidelines and ratios are now one system. The next lesson adds the final dimension: degree, the framework's way of naming which wave lives on which scale, from advances that take centuries to the ones that finish by lunch.
