Elliott Wave on Multiple Timeframes
Multiple timeframes are where wave degrees stop being theory and become a workflow: the same market, drawn on a weekly, a daily and an hourly chart, carries the same structure at three degrees at once, and each chart answers a different question. The weekly says which larger wave you are inside. The daily says where you are inside that wave. The hourly says where the entry and the stop live. One count, three windows, three jobs.
Degrees Become Timeframes in Practice
The theory names degrees; charts display time. The mapping between them is loose but real, and knowing its looseness is what keeps it honest. Weekly charts usually carry Primary and Cycle work, daily charts Intermediate, hourly charts Minor and below, but a violent Cycle-degree move can compress years of structure into weeks, and a lazy Intermediate correction can stretch until the monthly chart is the one showing it whole. The degree is defined by the structure's nesting, and the timeframe is only the window through which that nesting happens to be visible.
The practical consequence cuts both ways. A trader who counts only one timeframe is forever guessing whether the wave 4 in front of them is a small pullback inside a trend or the whole trend ending, because that question belongs to the degree above, which lives on a different chart. A trader who watches three timeframes without degrees is worse off still, drowning in labels. The workflow below exists to take the best of both: three windows, each with one degree and one job.

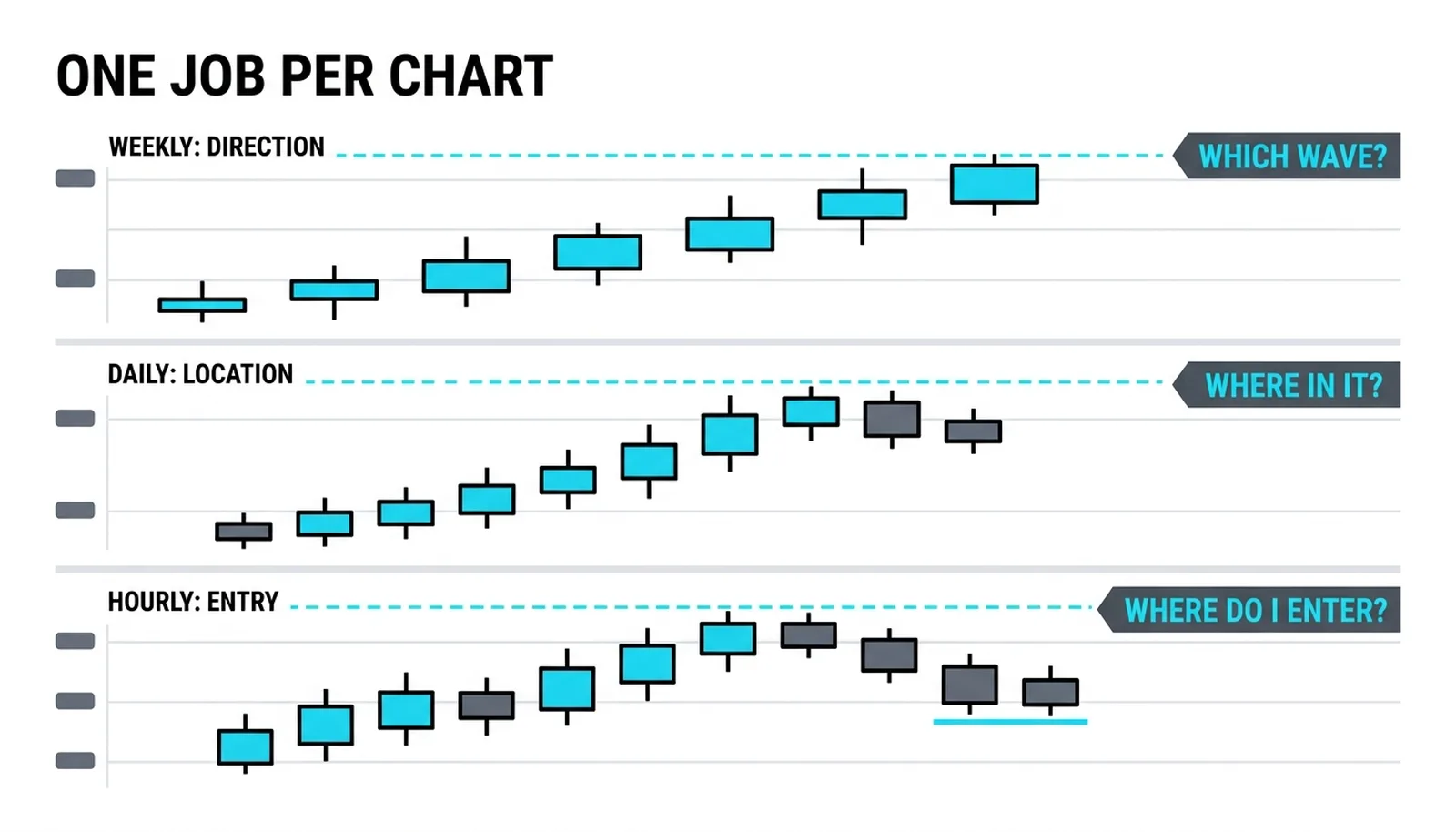

The Three Chart Workflow
Start at the top. The highest chart owns one question: which larger wave is this market inside, and which direction does that wave point. Its count changes rarely, and every change is a major event that re-prices everything beneath it. The middle chart owns the location question: inside that larger wave, which sub-wave is running now, and what price zone ends it. Its count changes occasionally. The lowest chart owns execution: inside the current middle-degree wave, where does the smallest countable structure offer an entry with a stop that sits close by. Its count changes constantly, and that is fine, because nothing strategic depends on it.
The discipline that makes the workflow work is one hypothesis per chart, written down, each with its invalidation. The weekly hypothesis names the larger wave and the price that would end it. The daily hypothesis names the current wave, its completion zone, and the price that would force a recount. The hourly plan names the entry, the stop, and the target, all three sitting inside the daily wave's path. When the three written pages agree, the trade has the whole structure behind it. When they disagree, the smallest chart loses, because the hourly exists to serve the daily, not to outvote it.
Alignment Is the Edge

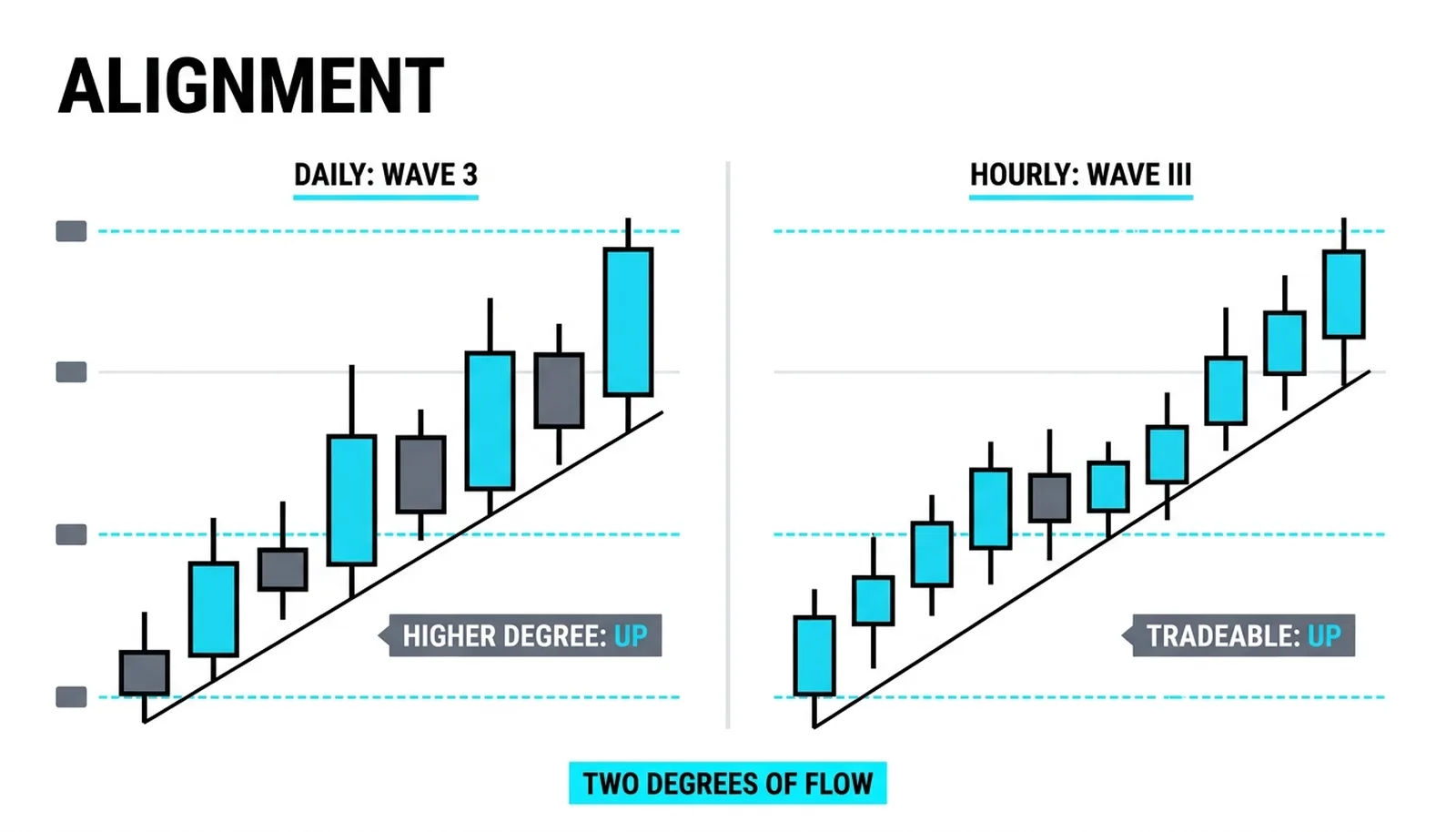

The framework's best trades are alignment trades: the daily wave 3 in progress, the hourly count showing its wave iii, both pointing the same way, and the entry taken where the hourly invalidation sits close under a structure the daily has already confirmed. Two degrees of flow in one direction is the closest thing this framework offers to a tailwind, and the size of the opportunity is proportional to how many floors agree, not to how precise the lowest chart's entry was.
Misalignment is information too. A beautiful hourly long inside a daily wave 4 correction is a trade against the floor above, and it will be measured in points while the daily's move is measured in tens of points. The hourly count can be flawless and still be the wrong instrument for the opinion, because the opinion belongs to a different floor of the building. Alignment does not require all three charts to point forever; it requires the entry's direction to match the middle chart's current wave, and the middle chart's wave to sit comfortably inside the top chart's.

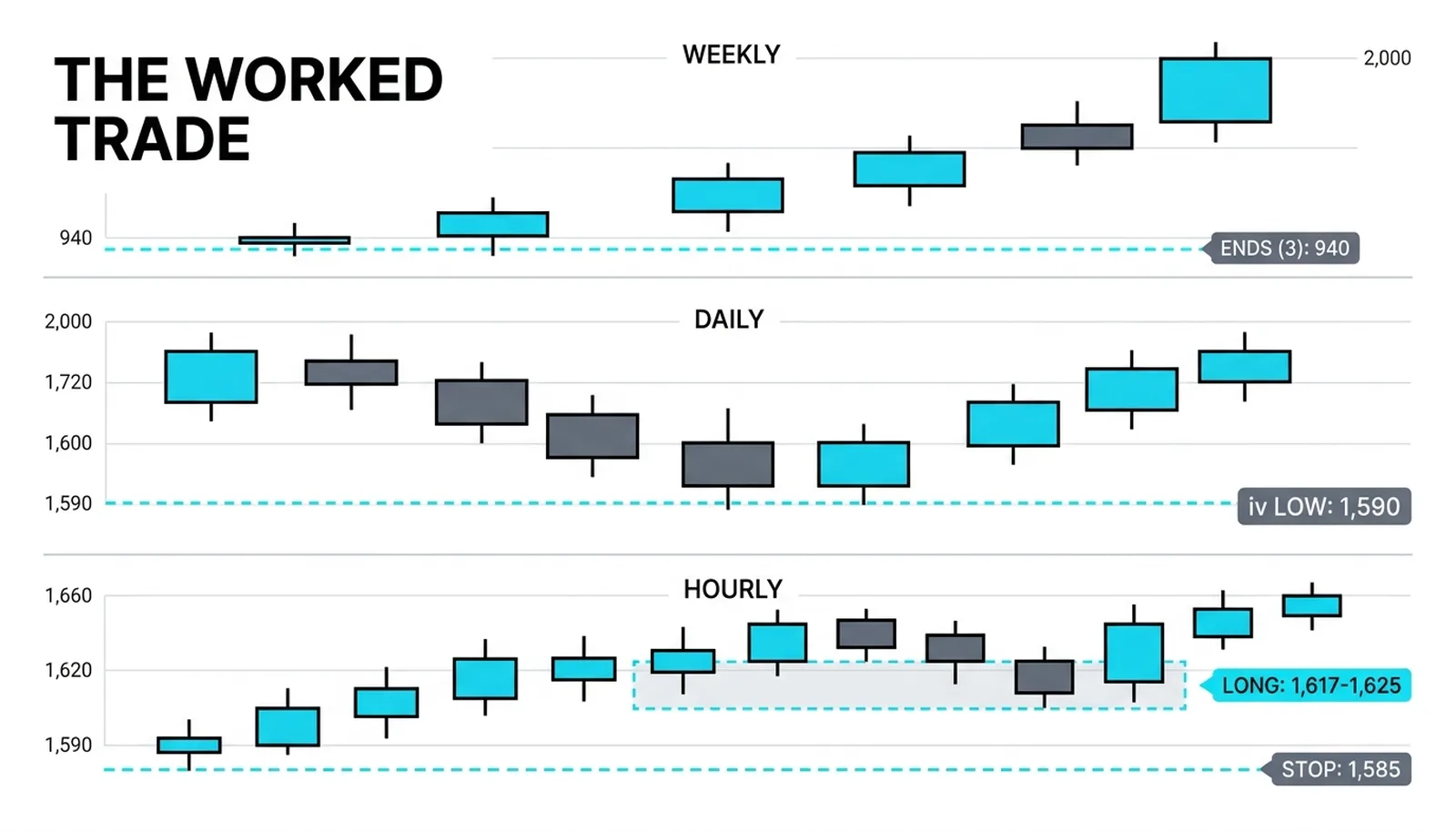

A Worked Example: One Market, Three Charts

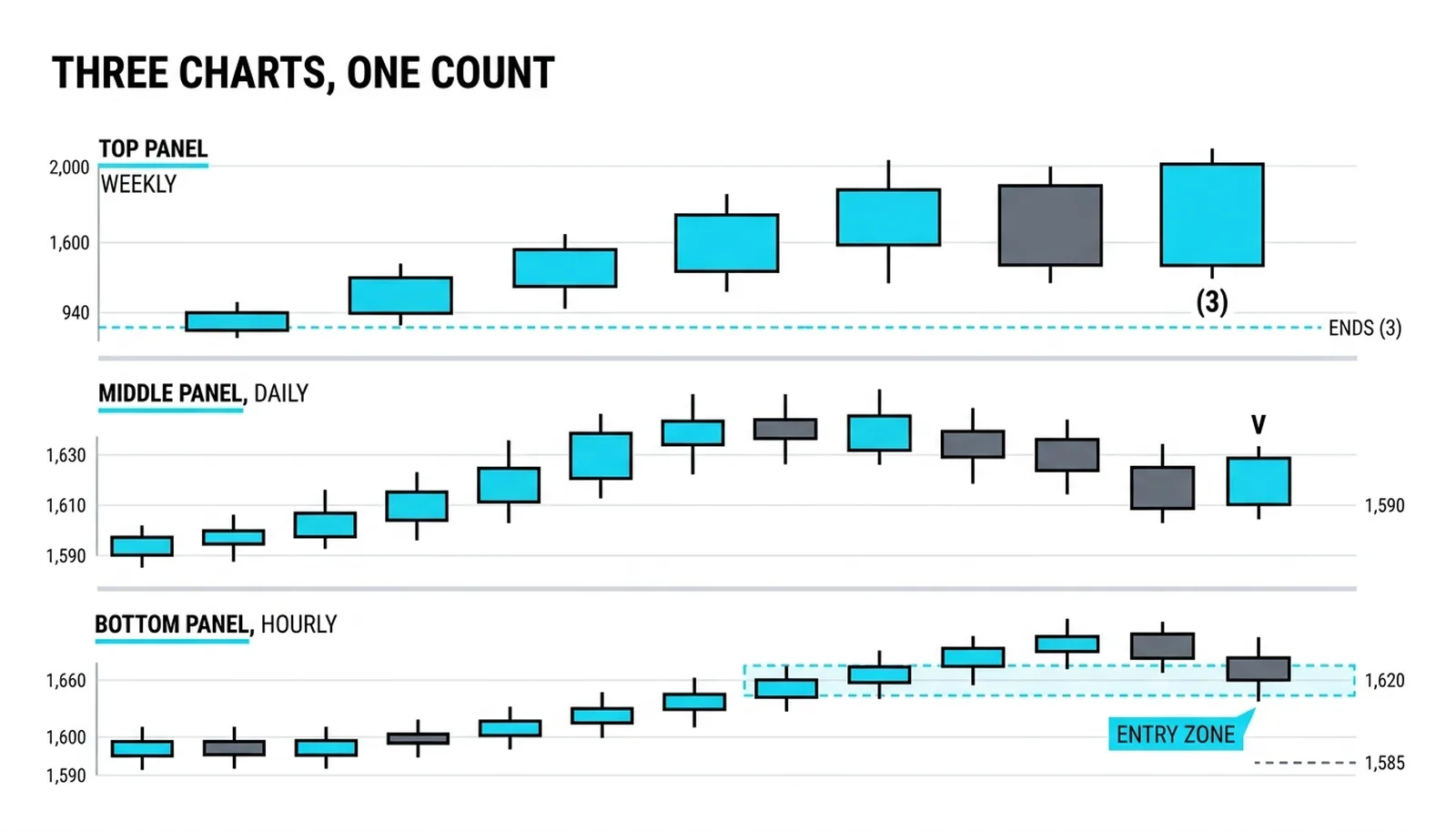

The hypothetical index from the degrees lesson, invented numbers throughout, is a live example of the workflow. The weekly chart carries the Cycle count: wave (1) from 800 to 1,050, wave (2) down to 940, wave (3) now in progress toward the 2,000 region, with a close below 940 the only thing that ends this read. That sentence is the entire weekly analysis, and it was written months ago.
The daily chart carries the Intermediate count inside that wave (3): i to 1,260, ii to 1,140, iii to 1,720, iv correcting to 1,590, which landed close to the thirty-eight percent zone of the advance from 1,140, and v now advancing toward 2,000. The daily's job is location: the market is in wave v of wave (3), and the price that would force a recount of v is a close below the wave iv low at 1,590. The hourly chart carries the execution count inside Intermediate v: its Minor wave 1 has run from 1,590 to 1,660, and Minor wave 2 is pulling back into the half-to-sixty-two percent zone of that seventy point advance, which is 1,617 to 1,625. The plan writes itself from the three pages: long in the 1,617 to 1,625 zone, stop below 1,585, which is the hourly structure's limit and sits above the daily's own invalidation, first target at the hourly's one and a half times projection near 1,733, with the weekly's 2,000 as the reason to hold the remainder. Three charts, three sentences, one trade.
The Classic Mistakes
| Timeframe | Degree it carries | Question it answers | Decision it owns |
|---|---|---|---|
| Weekly | Cycle to Primary | Which larger wave are we inside | Direction and permission |
| Daily | Intermediate | Where inside that wave | Location and invalidation |
| Hourly | Minor and below | Where is the entry | Trigger, stop, first target |

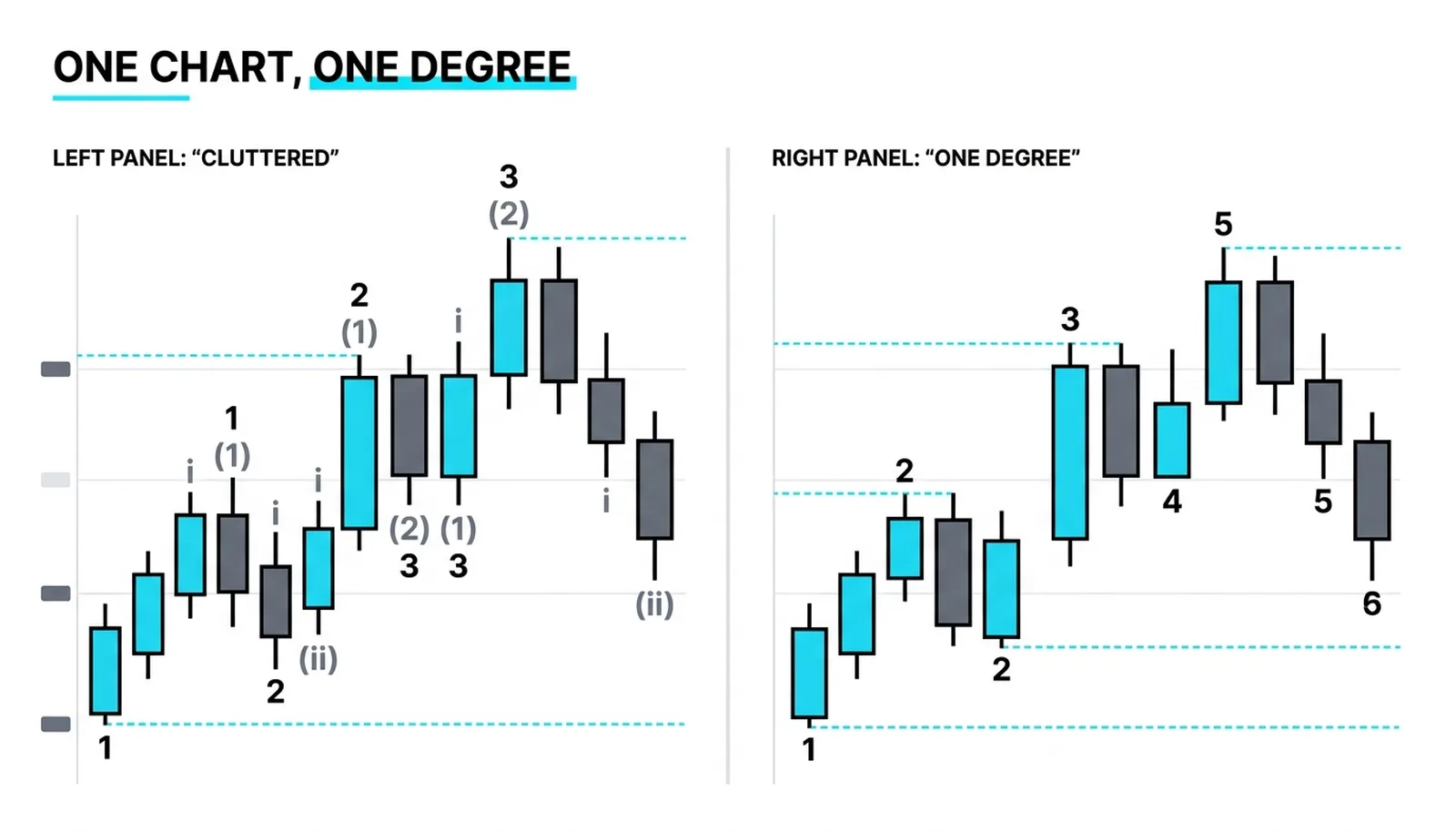

The first mistake is degree-mixing on one chart: labeling the same candles as 1 through 5 and, one swing later, as the (1) through (5) of something larger. One chart carries one degree cleanly; the moment two label families share a pane, the count has stopped being a map and started being a wish list. The second is over-counting, running three degrees on the hourly chart until every price is both a support and an invalidation, which is the framework's version of analysis paralysis.
The third and most expensive mistake is direction-fitting: redrawing the higher-degree count to rescue a lower-degree trade. The hourly long got stopped, so the daily wave count must be wrong, so the weekly must be re-examined, and two hours later the trader holds a brand new Cycle hypothesis built to justify a two-point miss. The hierarchy exists precisely to prevent this: the top chart's count changes on its own evidence, slowly, and never because a lower chart's trade lost. One blunt sentence: the tail does not wag the dog, and the hourly does not get a vote on the weekly.
Even the ratios join the stack: the multi-timeframe Fibonacci reading is this workflow with projections drawn at two floors.
Where This Sits in the Course
Nothing in this lesson is new geometry. The earlier multi-timeframe lessons in this course taught the reading of several charts against one another, and the levels work taught what a zone and an invalidation are. What the wave block adds is labels with structure: the degrees give the multiple-timeframe habit a spine, so that each chart's opinion is not a feeling about direction but a position inside a nested count, with laws that kill bad reads and ratios that size the remaining ones.
The block from here is application. The next lesson covers the failure mode every wave trader eventually meets, the wave 5 that falls short of its target and stops early, what a truncation signals about the strength behind the trend, and what it forces the count to admit.
Multi-Timeframe Wave Questions
Which three timeframes should I start with?
Weekly, daily and hourly is the standard spine, because it maps cleanly onto Cycle, Intermediate and Minor work for most instruments. Traders who hold for days can substitute monthly for weekly; intraday traders slide the whole stack down. The rule is the ratio between the windows, roughly one to four or five, so each chart is one degree apart, not half a degree.
What if the daily and hourly disagree?
Then there is no trade yet, and that is a position. The hourly exists to enter the daily's wave, and a daily wave running against the only hourly setup available means the setup belongs to the other direction's pullback. Wait for the hourly structure that points inside the daily wave rather than bending the daily count toward the hourly's temptation.
Do I need a monthly chart?
Only if the weekly's count depends on it, which for most instruments it does not. The monthly earns its place on instruments with decades of history, where Cycle waves are visible, but for a market a few years old the weekly is the top floor that carries real information, and a monthly count on thin history is imagination with gridlines.
How often should a higher-degree count change?
Rarely, and only on its own evidence: a close through its invalidation, or structure at its degree that the old label cannot contain. A weekly count that changes quarterly is a count; a weekly count that changes weekly is an hourly opinion pretending to be a weekly one. The stability of the top floor is what gives every floor beneath it permission to be tradable.
The wave block now has its structure, its laws, its guidelines, its ratios, its degrees and its workflow. The remaining lessons put all of it under stress: what happens when the fifth wave refuses to reach its target, and how the framework behaves in the hands of a trader counting a real chart in real time.
