How Algorithms Leave Footprints on Charts
Algorithms leave footprints on charts for a simple reason: they are rule followers, and rules repeat. A program that must reprice at every tick, slice an order on a schedule, or defend a level with a defined order size does not improvise. It does the same thing under the same conditions every time, and candles record what it did. Human traces look different: ragged, emotionally timed, unevenly sized. Machine traces are exact, punctual, and repeated, and once a reader knows the four recurring marks, they start appearing everywhere, because they genuinely are everywhere. The skill this lesson builds is not spotting robots for their own sake. It is recognizing where the market's timing and precision come from, and using that knowledge for entries, exits, and stops placed where the machines are unlikely to punish them.
Why Machines Leave Marks
Three properties of program flow produce nearly every machine mark on a chart. The first is speed: a program moves in a single second what a human crowd takes minutes to negotiate, so machine participation prints as vertical candles, sudden range expansion with no build-up. The second is precision: programs turn at exact tick levels rather than approximate zones, because their models define levels numerically, and a rule that says sell at 4,102.25 sells at 4,102.25, not near it. The third is repetition: an execution algo slicing a parent order works on a schedule, so its prints arrive at regular intervals, and a decision program that fires at the 10:00 options mark fires at the 10:00 options mark tomorrow. None of these properties is subtle in combination. Speed plus precision plus repetition leaves the same shapes again and again, and the shapes are learnable.
What the marks are not is signals. A machine mark is an observation about who was active, and the same mark can mean opposite things on different days. The sweep and snap described below is sometimes a trap being sprung and sometimes simple stop clearing before a genuine move; the chart alone rarely settles which. The value of this literacy is calibration: knowing what normal machine behavior looks like in a given session, so abnormal behavior in the flow stands out, and knowing where the program flow is likely to be, so stops and entries are placed with the flow's habits in mind rather than against them.
The Four Recurring Marks

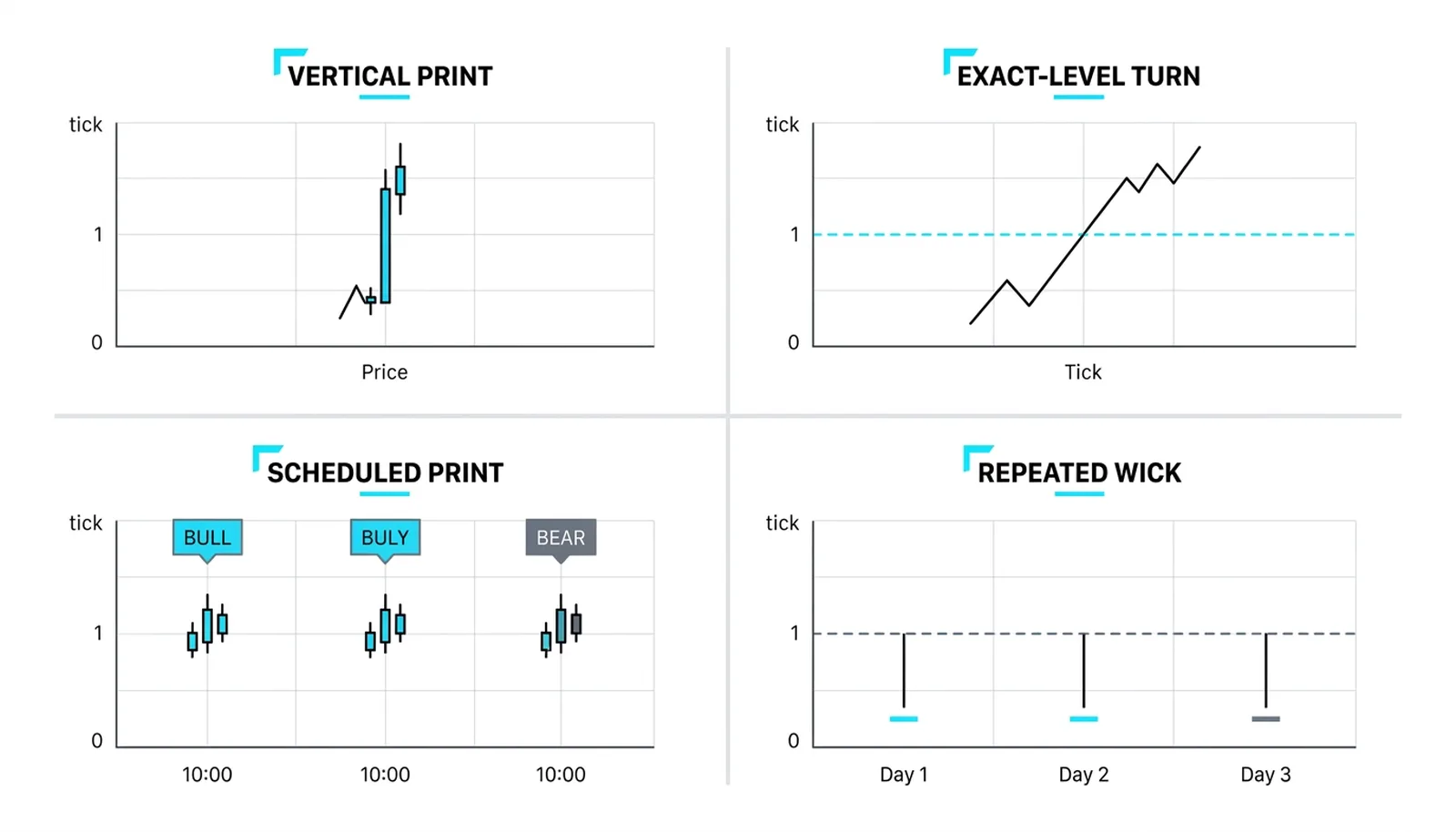

The vertical print is the first mark: a candle or sequence that covers in seconds what the surrounding candles cover in minutes, with volume in a single second exceeding whole minutes around it. This is decision flow acting at once, and its aftermath usually includes a fast retrace, because programs take profit as mechanically as they enter. The exact-level turn is the second: reversals that begin at precise prices, repeatedly, where the level itself was defined by a model or a prior print. Human turns smear across a zone; machine turns spike off a tick. The scheduled print is the third: bursts that arrive at fixed clock times, the session open, the 10:00 economic mark, the last hour of accumulation before the close, because execution algos are benchmarked to time and their orders are programmed to arrive then. The repeated wick is the fourth: long upper or lower shadows testing one price over multiple sessions, each rejection sharp, each close back inside, the signature of a level being defended by defined order sizes rather than by opinion.
| Property | Machine mark | Human crowd move |
|---|---|---|
| Speed | Full move inside seconds | Stretched over minutes or hours |
| Level contact | Turns at an exact tick price | Smears across a zone |
| Timing | Repeats at fixed clock times | No schedule, emotion-driven |
| Aftermath | Immediate partial retrace | Acceptance beyond the level |
A Worked Example: The Sweep and Snap

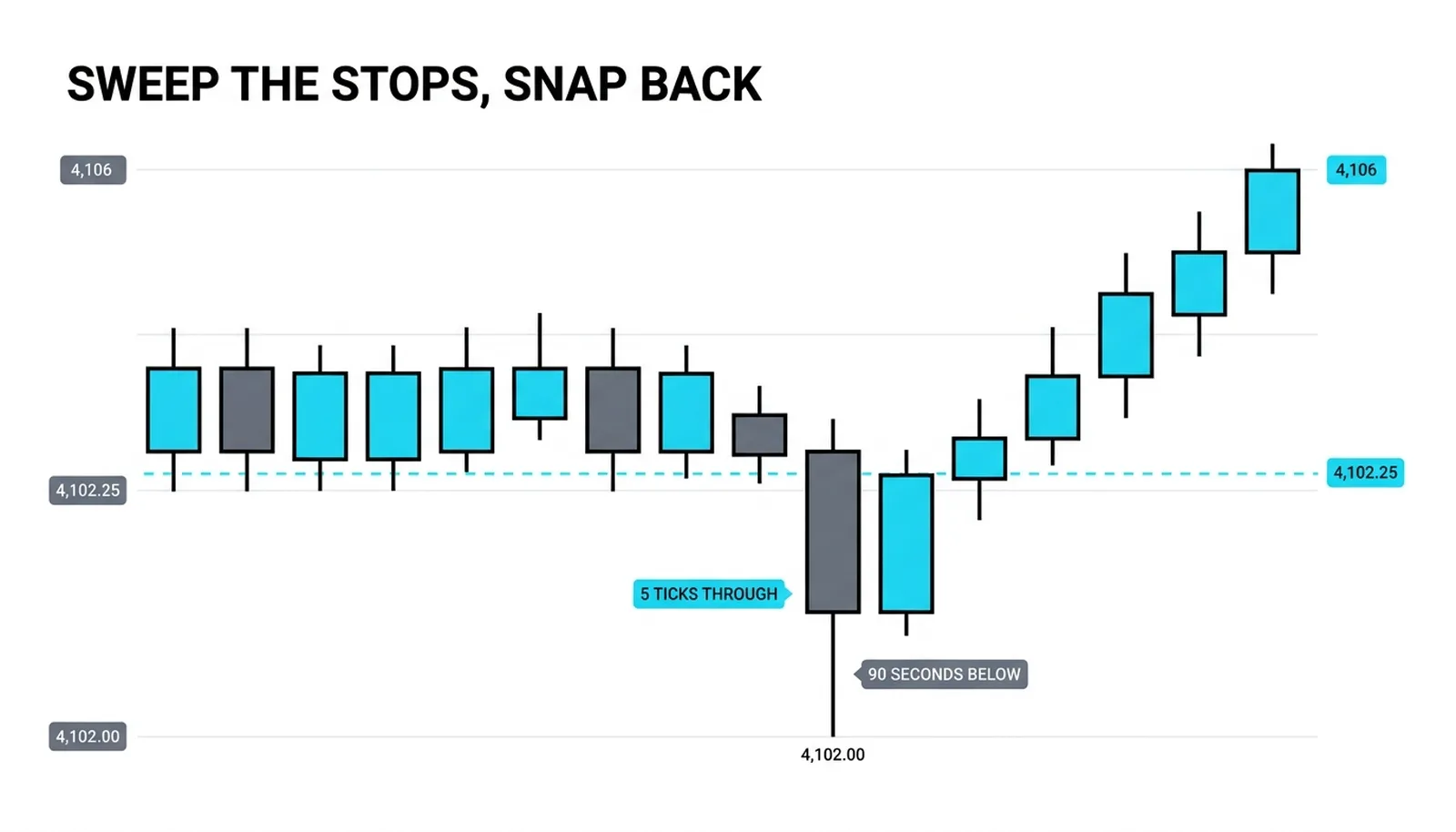

Set the scene on a five-minute chart of an index future. Two sessions of range trading have built a visible floor at 4,102.25, a level that has held three times, and every long-biased trader in the market has a stop just below it, because below the floor the range idea is wrong. At 10:02 and 41 seconds, price drops through the floor in one second: 4,102.00 prints, five ticks through the level, on volume that dwarfs the last ten minutes combined. Every one of those resting stops fills. One second later the selling stops. Ninety seconds after it started, price is back at 4,102.50, above where the breakdown began, and by 10:06 it is walking away to the upside toward 4,106. The move down was real, the fills were real, and the reversal was equally real. That is the sweep and snap: a vertical print through an obvious level, an exact-level turn, and a retrace as fast as the break.

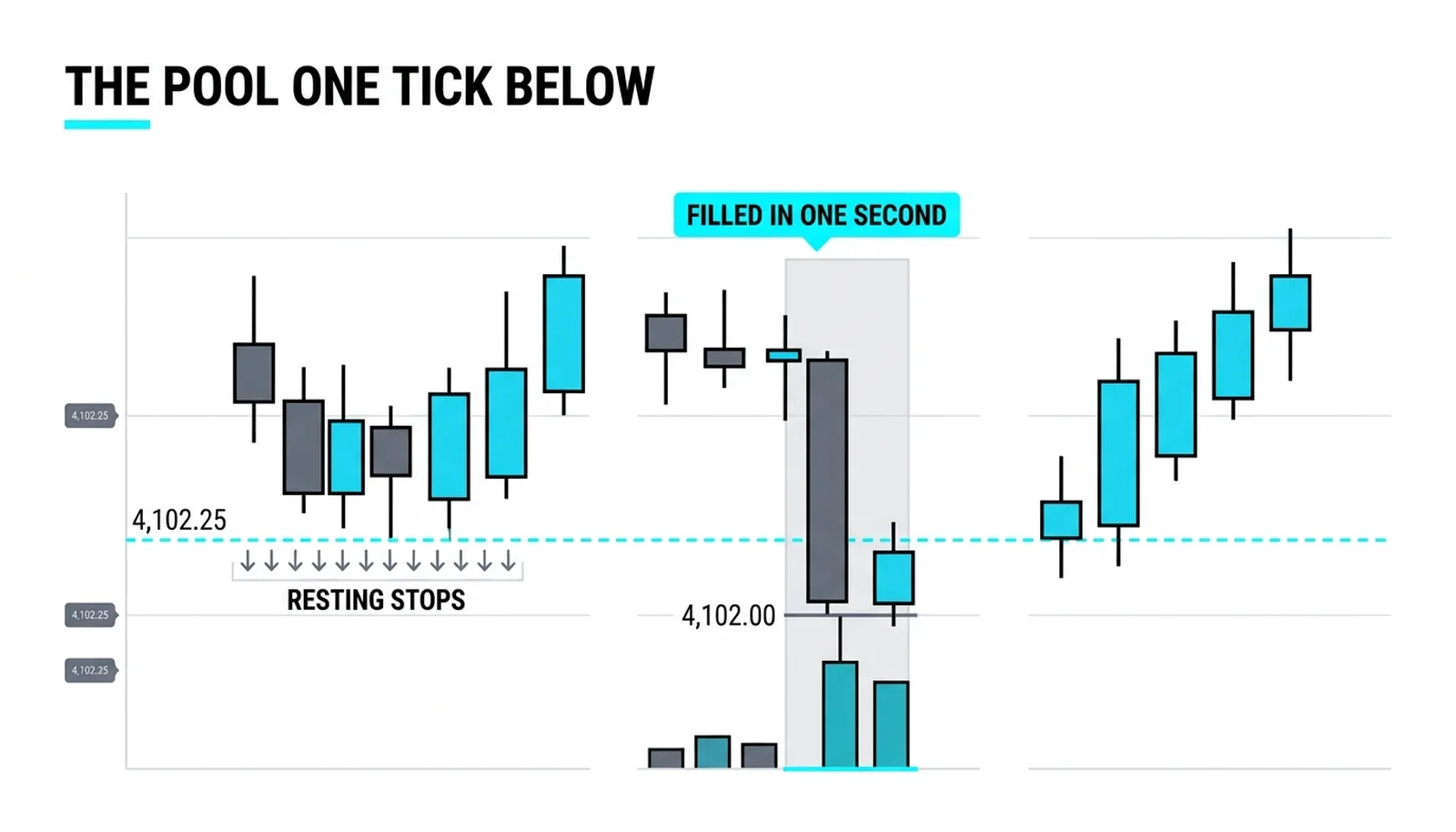

Read the same event the way its engineer designed it. The level 4,102.25 was not chosen by chance; it was public, tested, and loaded with stops, which made it a pool of guaranteed sell orders waiting exactly one tick below. A a program with size to buy does not chase the offer above the range. It sweeps the pool: sells nothing, buys the panic, fills its entire order in the second the stops are triggering, at prices the range never offered. The snap is not a rescue; it is the program having finished. The chart afterward shows the tell-tale sequence the worked example displayed: the wick below the floor, the immediate reclaim, the strong close, and then the delayed follow-through once the trapped shorts start covering. Nothing about the sequence required insider knowledge. It required knowing where the resting orders were, and arriving there first with size.

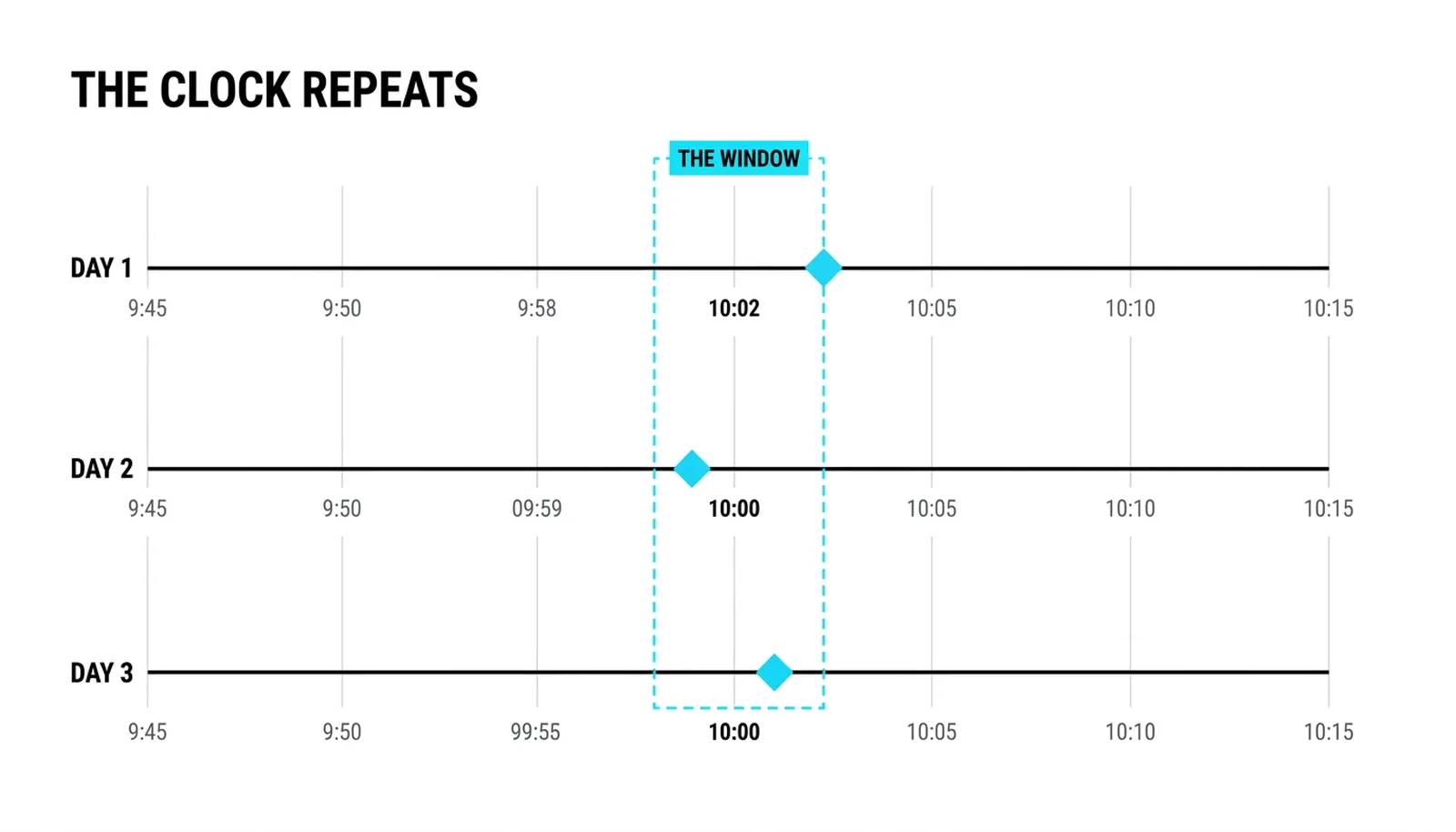

Now add the clock. Run the same scan across three sessions and the sweep prints near 10:00 each time, within a two-minute window, because the burst coincides with the morning economic data mark when scheduled execution programs are most active. On day one the sweep is at 10:02; day two at 09:59; day three at 10:01. The levels differ slightly, the clock does not. A trader who has noticed the repetition stops treating each sweep as a surprise and starts treating the window as a known condition: stops tightened or moved before the mark, entries planned for after the snap rather than during the sweep. The single mark was an observation. The repeated mark is a schedule, and schedules can be prepared for.
Reading Marks Without Blaming Them
The practical discipline is to read machine footprints as conditions rather than as intentions. The vertical print says high participation arrived; it does not say which way the next hour goes. The exact-level turn says a model is defending a number; the model can be right for weeks and wrong the day the conditions that justified it change. The scheduled print says the clock matters; it does not say the direction the scheduled flow will push. And the repeated wick says a level is being worked by defined sizes, which is valuable for stop placement regardless of the eventual direction: stops go beyond the defended price plus its sweep tolerance, or not at all. Traders who misuse these marks all make the same error, treating a structural observation as a directional signal. Traders who use them well place orders where machine behavior is predictable and stand aside where it is not.
There is also a permission slip in this literacy. Much of the folklore about machine markets tells the individual trader that the game is rigged beyond participation. The footprints say something more useful: the machines are consistent, their consistency is visible, and visible habits can be traded around. Nobody out-races the sweep. Plenty of traders profit by refusing to hold stops inside sweep range, by buying the snap instead of the sweep, and by scheduling their own decisions away from the clock times when the tape belongs to programs with orders to deliver. The chart's machine marks are the evidence that the market's microstructure has rules. Rules can be learned.
Recognizing footprints is still an eyeball discipline, done one chart at a time. The next lesson formalizes the instinct: quantitative analysis, the practice of turning market observations into measured, testable numbers.
Machine Mark Questions
Do algorithms really leave identifiable patterns on charts?
Yes, as a structural byproduct of rule-following. Speed prints as vertical candles, numeric precision prints as exact-level turns, scheduled execution prints as clock-time bursts, and defined order sizes print as repeated wicks at defended levels. The marks are observable and repeatable, which is what makes them learnable, though none of them is by itself a directional signal.
What is a sweep and snap?
A two-step sequence: a fast, high-volume push through an obvious level, typically triggering the resting stops just beyond it, followed by an immediate retrace and continuation in the opposite direction. In the worked example, price ran five ticks under a triple-tested floor, filled the stops below, and returned above the floor within 90 seconds. The sweep collects the guaranteed orders past the level; the snap is the collecting program having finished its fill.
Why do some moves happen at exactly 10:00?
Because the clock times are when scheduled flow is programmed to arrive: economic data releases, options market marks, and execution benchmarks that tie order delivery to fixed times. Execution algorithms slice parent orders to match expected volume, so their bursts cluster on the schedule. The 10:00 mark is one of the densest, which is why sudden prints there are so often delivery, not news.
Can a retail trader profit from machine footprints directly?
Indirectly, and that is the realistic framing. The marks inform placement: stops beyond sweep tolerance, entries after the snap rather than during the sweep, reduced exposure inside the scheduled windows when the tape is most program-driven. Trying to out-race the machines at their own game is a losing plan; trading around their known habits is a durable one, and it needs no equipment beyond the chart and the clock.
